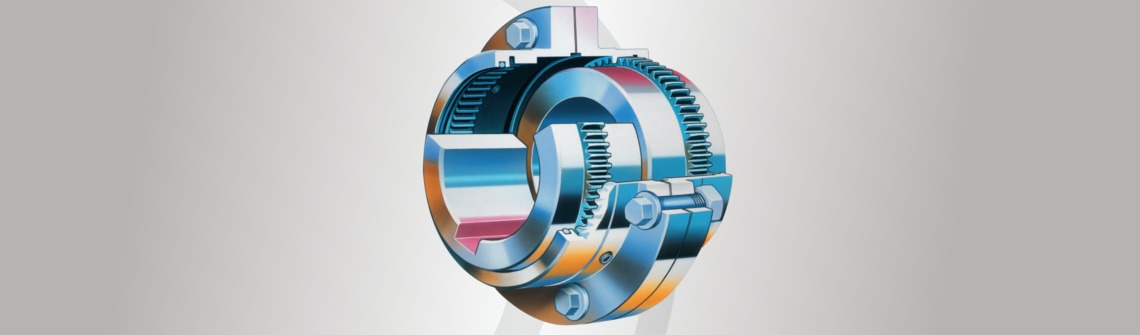

Gear Coupling by Falk
Instructions to Page Editor Source from – \Google Drive\M Drive\Common Document Center\Technical Details\Brands\REXNORD\Products\Couplings
About Coupling (Sub-brand of Rexnord)
The unmatched bore capacities and torque ratings of Falk Lifelign couplings often allow you to select a smaller sized coupling for a given application. In fact, selections for T frame, 60 hertz electric motors result in a drop of one coupling size for half of the 28 motor frames available. The result: quality, reliability and performance with average savings of 15-20% over competitive offerings. The smaller overall size also makes Lifelign couplings well suited for limited space applications that still require large bores and high torque loads.
Basic Information
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.05.42-PM.png)
Design Attributes & Advantages
- The high torque ratings and large bore capacities result in savings of up
to 35% compared to the competition - Long Term Grease (LTG) lubrication and a four-point seal provide maximum lubrication retention, extend the coupling life and contribute to reduced maintenance needs.
- 3 year heavy duty warranty when used with LTG
- Lifelign’s triple-crowned teeth are crowned on
the root, tip and face
to articulate freely, minimizing wear caused by misalignment. The triple- crowned teeth protects equipment from damaging loads by eliminating tip- loading while reducing backlash and radial clearances.
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.20.28-PM.png)
General purpose series used on bulk handling systems, paper machines, fans, pumps, cranes mixers, sugar mills, crush- ers and many other high-torque applications.
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.22.25-PM.png)
Used on high- speed equipment with low inertia requirements.
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.22.52-PM.png)
For very high torque applications, including power plants, mining, cement, steel and metal mills, paper, sugar, rubber
and other large industrial plants.
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.23.21-PM.png)
Sizes & Selection / Nomenclature
![](https://rolltech.in/wp-content/uploads/2020/04/Picture1-3.jpg)
![](https://rolltech.in/wp-content/uploads/2020/04/Picture1a-1.jpg)
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.39.01-PM-1.png)
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-2.40.52-PM-1-1024x501.png)
![](https://rolltech.in/wp-content/uploads/2020/04/Screenshot-2020-04-29-at-3.08.15-PM.png)
Applications & Installation Guide
- Pumps
- Paper machines
- Conveyors
- Pulpers
- Crushers
