Food-grade & Special Housed Units – Corrosion Resistant

BHAVIN
At rolltech we are primarily focusing on TIMKEN only but above type is manufactured by TIMKEN, DODGE, REXNORD & CHINESE brands are very cheap priced and popular in INDIA

So Timken will be priority – refer –
https://www.timken.com/products/timken-engineered-bearings/housed-units/timken-corrosion-resistant-poly-round-housed-units/

https://cad.timken.com/category/housed-unit-bearings – check corrosion resistant section

FROM ABB Dodge – Put Catalog or reference https://library.e.abb.com/public/48f07305c13e419eab6872bf019f94ea/9AKK107297.pdf or https://www.baldor.com/brands/baldor-dodge/products/mounted-bearings/mounted-ball-bearings/washdown-duty/ez-kleen-bearings

From Rexnord
C:\Users\Mitul\Google Drive\M Drive\Common Document Center\Technical Details\Brands\REXNORD\Products\Bearings\Rexnord – Presentation_LinkBelt BB Klean-Gard SS Insert.ppt

Basic Information

Engineered to help you maintain the highest standards in food safety, our hygienic housed units deliver improved production uptime. Made from corrosion-resistant materials and available with food-grade
Solid Lube, this premium product can withstand aggressive washdowns and a variety of wet and dry contaminants.
Available in optically detectable blue thermoset or stainless steel housings, our Ball Bearing Housed Units can help reduce ownership costs. Thanks to an easy-to-clean design, food-grade lubricant and Solid Lube, Ball Bearing Housed Units provide longer operating life and fewer maintenance events.
Hygienic Poly-Round® Plain Bearing Housed Units stand up to harsh conditions found in the food and beverage industry. Made from corrosion-resistant materials, Hygienic Poly-Round Units are resistant to common chemical and high-pressure washdowns.

Ball Bearing Housing

**HYGIENIC BALL BEARING HOUSED UNITS**
( Stainless Steel or Blue polymer Housing )

» Housings available in optically detectable blue thermoset or stainless steel in all mounting styles

» Thermoset housings are cast to eliminate voids and increase strength

» Stainless steel ball bearing inserts include set screw locking and metal cage and double lip seal

» Interchange industry-standard mounted bearings from 20 mm to 50 mm (3/4 in. to 2 in.)

» USDA-accepted hygienic design

» Designed for normal operation between −20° C and 100° C (-4° F and 212° F) and may vary with Solid Lube

» Available with food-grade Solid Lube or food-grade grease relubricable option

Poly Round Housing

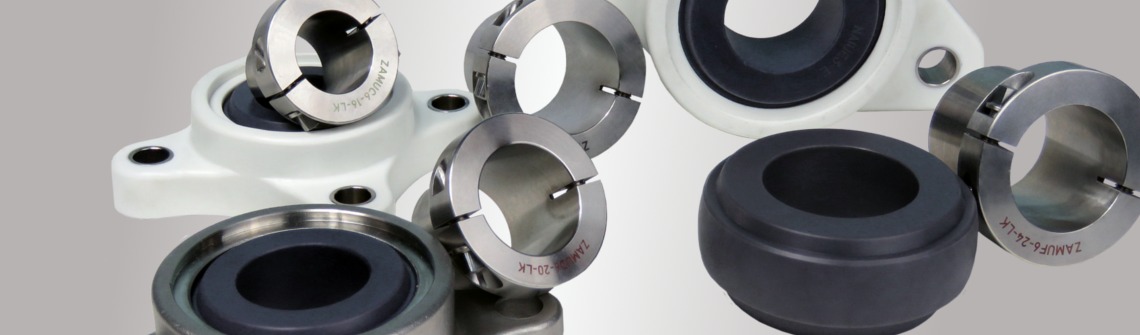

**HYGIENIC POLY-ROUND® HOUSED UNITS**
( Stainless Steel or Blue polymer Housing )

» Housings available in optically detectable blue thermoset or stainless steel in all mounting styles

» Thermoset housings are cast to eliminate voids and increase strength

» Greaseless Poly-Round bearing

» Engineered polymer insert eliminates failure due to water ingress and corrosion

» USDA-accepted hygienic design

» AISI 316 shaft-locking sleeve with KleanCapTM screws

» Designed for operating temperatures between -40° C and 93° C (-40° F and 200° F)

» Interchangeable industry-standard bearing units from 20 mm to 50 mm (1/2 in. to 3/4 in.)

Design Attributes & Advantages

BALL BEARING HOUSING

Comply with Regulations : USDA-accepted hygienic housings feature smooth surfaces without reinforced bolt holes and comply with NSF/ANSI/3-A SSI 14159-1 – 2014. Bearings feature FDA-compliant NSF H1 food-grade lubricants.

Help Detect Contamination : Both optically detectable blue thermoset housing and metal-detectable ball bearing cage help detect foreign particles.

Simplify Cleaning : An optional QuiKlean® housing design avoids dead volume between the housing base and machinery, allowing washdown from all sides. Smooth housing surfaces with laser marking allow for effective removal of residue and reduced washdowns. Solid Lube option prevents grease purge.

Raise Productivity : Hygienic housings reduce downtime from mandatory cleanings and food-grade Solid Lube eliminates the need for relubrication.

Achieve Lower Cost of Ownership: Premium bearing units are engineered to reduce costs associated with washdown, downtime and product recalls.

POLY ROUND HOUSING

Raise Productivity : The greaseless Poly-Round design reduces downtime by eliminating bearing re-greasing and can outperform ball bearings in many applications. Hygienic surfaces make washdowns easier and faster.

Simplify Cleaning : An optional QuiKlean® housing design avoids dead volume between the housing base and machinery, allowing washdown from all sides. Smooth housing surfaces with laser marking allow for effective removal of residue and reduced washdowns.

Help Detect and Reduce Contamination: Optically detectable blue thermoset housings make it easy to identify foreign objects in the food products. Lubrication-free Poly-Round Plain Bearings help lower contamination risks by using fewer components.

Comply with Regulations : Hygienic Poly-Round Housed Units are USDA- accepted and meet NSF/ANSI/3-A SSI-14159-1-2014 requirements. This easy-to-clean design makes the product ideal for HACCP or HARCP positions.

Adapt to Your Applications : Dimensionally interchangeable with most industry-standard bearings, Poly-Round Plain Bearing Housed Units offer a wide variety of polymer bearing materials and housing styles to fit your s
